Lovol excavators
Crawler excavators matched to digging, loading, quarrying and general earthmoving requirements.
MINING · EARTHMOVING · SOURCING
Source the machine. Manage the complete process.
New, refurbished and used equipment sourced from across the world, with specification review, inspection coordination, logistics and local handover.
Discuss your requirement ↗
LOVOL SITE FLEET
Match loading, haulage and road support as one system.
Selection is driven by material, density, face height, haul distance, gradients, road conditions, target tonnes and local support.
Lovol bulldozers
Dozing and site-development machinery configured around material and underfoot conditions.
Lovol graders
Road formation and maintenance equipment for haul roads and site infrastructure.

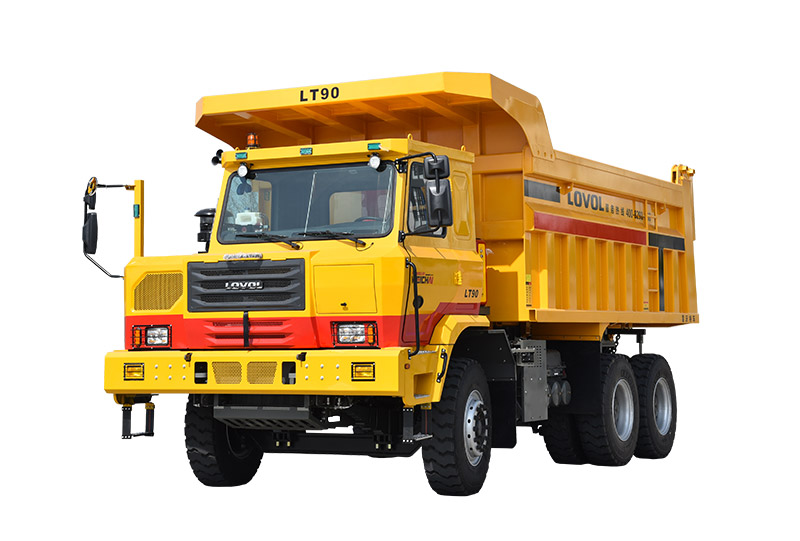

Lovol mining trucks
Haulage solutions considered against payload, cycle, road and loading-machine match.
Bull backhoe loaders
Versatile digging, loading and site-support machines for changing daily duties.
Bull skid-steer loaders
Compact loading and materials-handling support for congested work areas.
Lovol production fleet
Excavators, bulldozers, graders and mining trucks are evaluated as a connected loading, haulage and road-maintenance system, with Bull backhoes and skid-steers supporting general site work.
New machinery for the duty
Machine size and configuration are matched to material, production target, cycle time, underfoot conditions, operator requirements and the support plan.
IMC SCRAPER RANGE
Three distinct machines for levelling, finishing and earthmoving.
FLL, LCE and GE-DC are presented separately so the loading method, capacity, tractor class and job outcome can be matched before a scraper is specified.

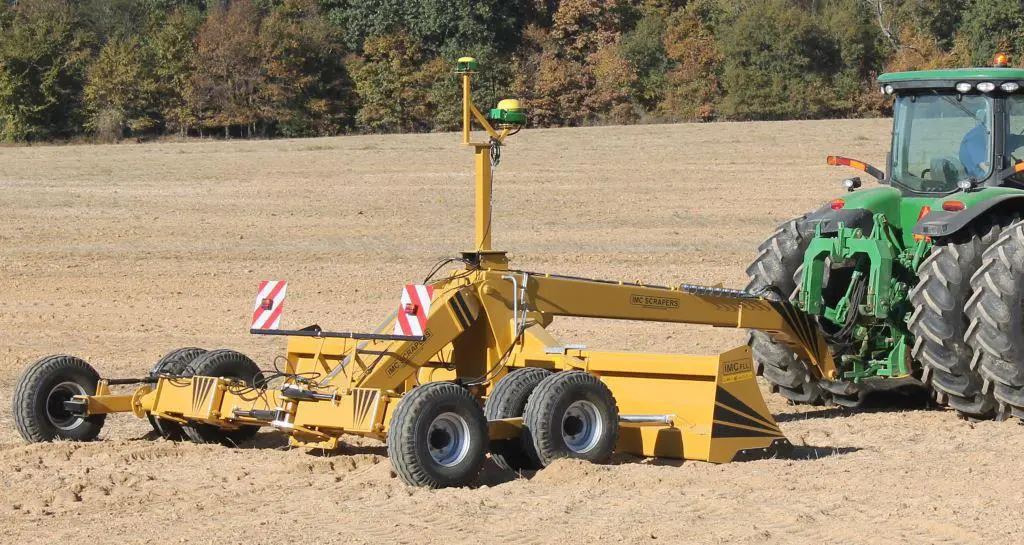

Folding land levellerIMC FLL Series
A wide folding land leveller for precision field finishing. Operator-controlled folding brings transport width to about three metres, while walking tandems and laser or GNSS machine control help form a consistent grade.
ModelsFLL16 · FLL20 · FLL24
Cutting width5.0–7.3 m
Transport widthAbout 3.0 m
Tractor power150–300 HP

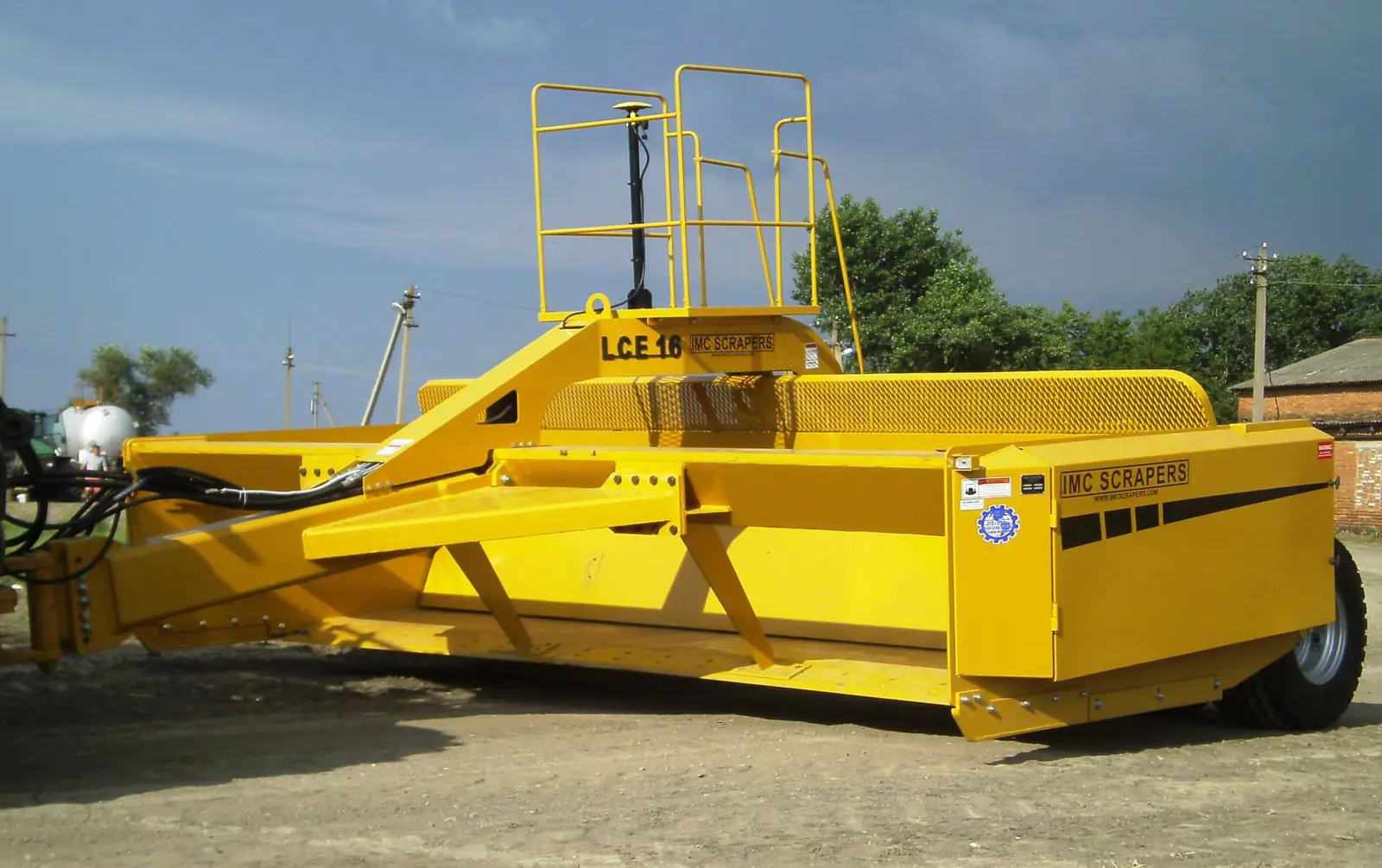

Ejection finishing scraperIMC LCE Series
A non-gated finishing scraper with a ten-point roller-ejection system for smooth, jam-resistant discharge. A reinforced double-wall body, heavy-duty walking tandem and reversible Hardox wear blades support demanding finishing work.
Ejection10-point roller system
BodyReinforced double wall
Wear edgesReversible Hardox
ControlsMachine-control ready

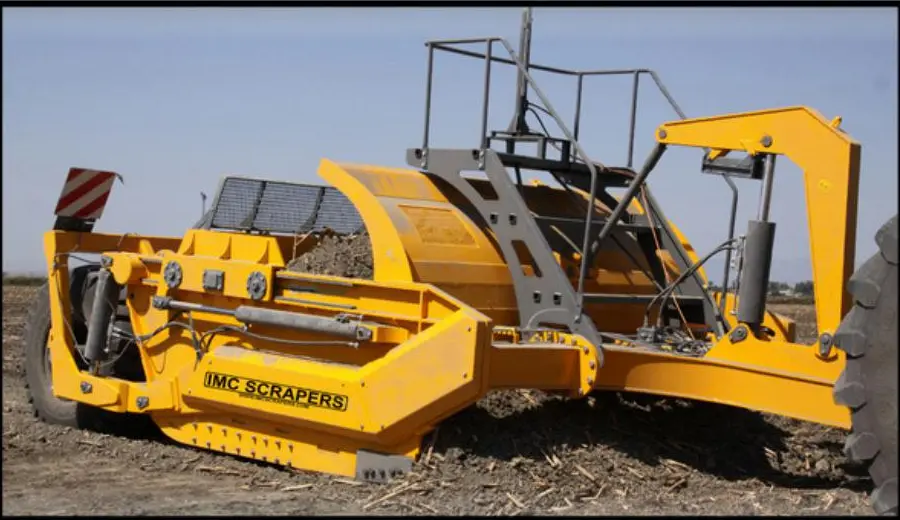

Gated ejector scraperIMC GE-DC Series
A high-capacity gated ejector for soil transport and controlled placement. Dual-cylinder ejection, a one-piece gate and reinforced frame serve heavy earthmoving; an optional tandem hydraulic kit supports multiple-scraper operation.
ModelsGE-DC 1710.5 · 2012 · 2214
Heaped capacityAbout 17–22 yd³
Cutting widthAbout 3.2–4.26 m
Tractor power350–500 HP

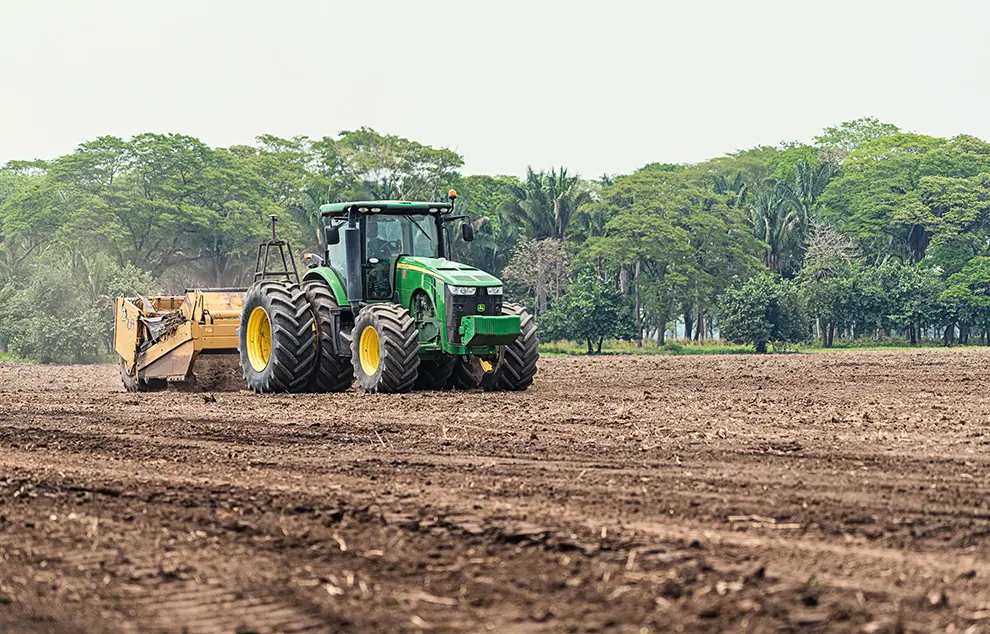

TOPCON WATER MANAGEMENT
Survey. Design. Form the land.
Topcon combines 2D laser levelling and 3D GNSS land-forming workflows across three connected phases: survey the surface, design the target grade, then execute it with machine control. Used with the appropriate IMC scraper, the process can improve drainage and water distribution while making more of the site practical to work.
Configure land-forming control ↗TMO HEAVY RECOVERY WINCHES
33-tonne and 50-tonne-class pulling systems.
Terra Agri focuses on two TMO Caçador tractor-mounted winches for site support, machine recovery and controlled pulling. The machine, mounting kit, tractor power, cable, anchor plan and operating procedure must be assessed together.

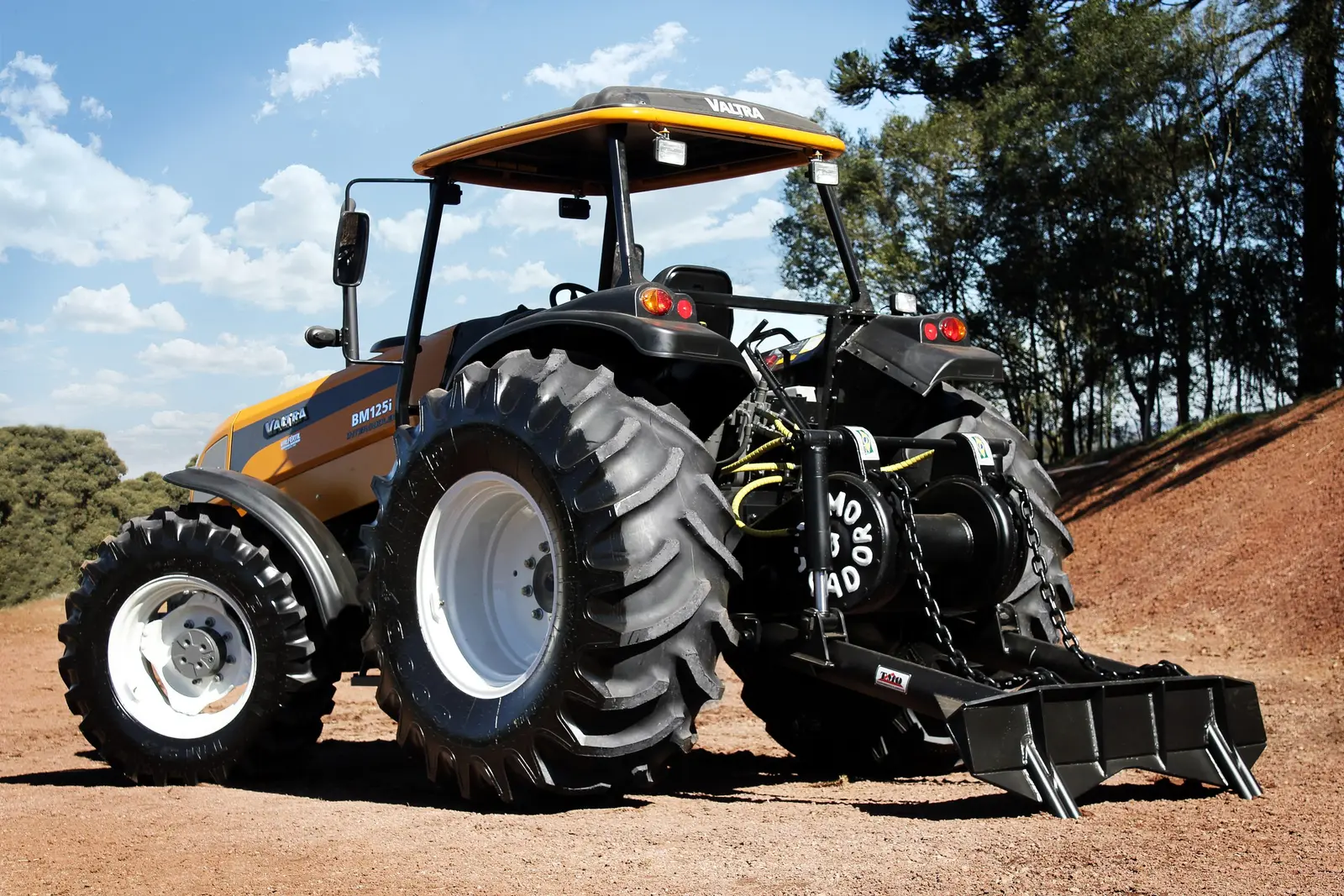

33-tonne winchTMO G1-33T
The 33-tonne model combines high mechanical resistance with a tractor-mounted package for recovery and heavy pulling support. Hydraulic or mechanical engagement, brace and brake configurations are available.
Maximum resistance33,000 kgf
Minimum tractorAbove 90 HP
Cable option 13/4 inch · 120 m
Cable option 25/8 inch · 200 m

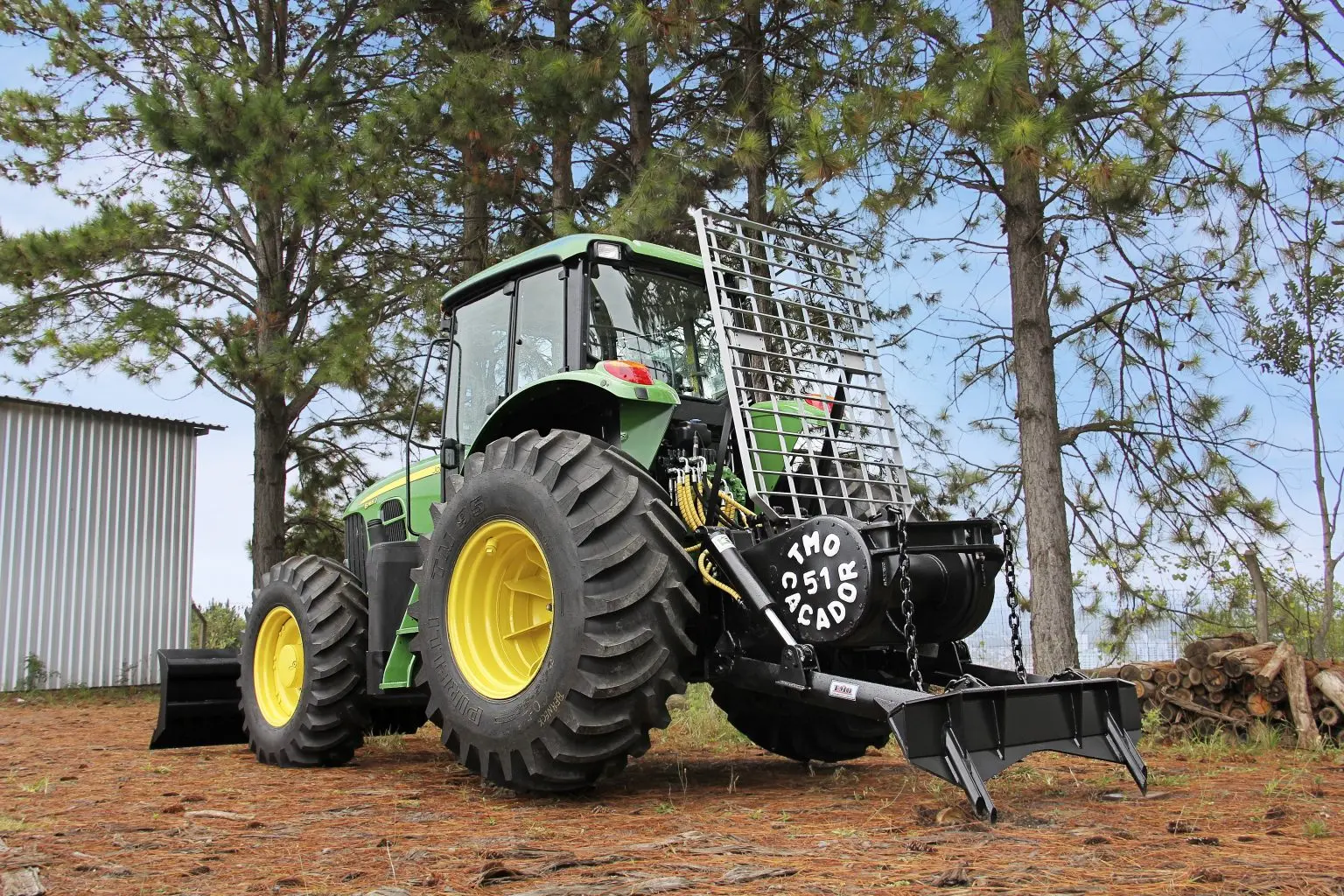

50-tonne classTMO G0-51T
The heavy G0-51T is the TMO model serving the requested 50-tonne class. Hydraulic engagement, brace and braking are matched with a high-horsepower tractor for the most demanding controlled pulling work.
Maximum resistance51,000 kgf
Minimum tractorAbove 165 HP
Recommended cable1 1/8 inch · 100 m
ControlsHydraulic
Pulling capacity is not lifting capacity. Final supply requires a site-specific safety, mounting, cable and tractor compatibility review.
GLOBAL SOURCING PROCESS
Control the hand-offs.
For used and refurbished machines, condition, documentation and scope need to be explicit before shipping.
Define
Duty, output and budget.
Search
Global machine and supplier options.
Inspect
Condition and documentation review.
Agree
Scope, inclusions and acceptance.
Move
Export, shipping and import coordination.
Handover
Arrival, checks and support plan.
CONNECTED TO THE FIELD
Topcon guidance is built into how we work.
Guidance, application control, machine data and fuel monitoring help reduce overlaps, improve consistency and create a clearer view of operating performance.
START WITH THE APPLICATION
